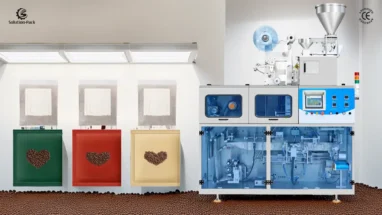

The ATB-DC45 automatic drip coffee packaging machine is an advanced, integrated machine for producing foil-wrapped drip coffee bags. The entire machine unit adopts an HFFS design, integrating inner-bag and outer-sachet packaging systems, saving installation space and facilitating operation. It adopts a high-standard configuration with Siemens PLC control and intelligent HMI display. This drip coffee bag packaging machine can maintain a stable production speed of 40-45 sachets per minute, helping users improve production efficiency and reduce labor costs. This machine unit is widely applied to pack ground coffee products with excellent performance. It is widely used by large single-serve coffee producers.

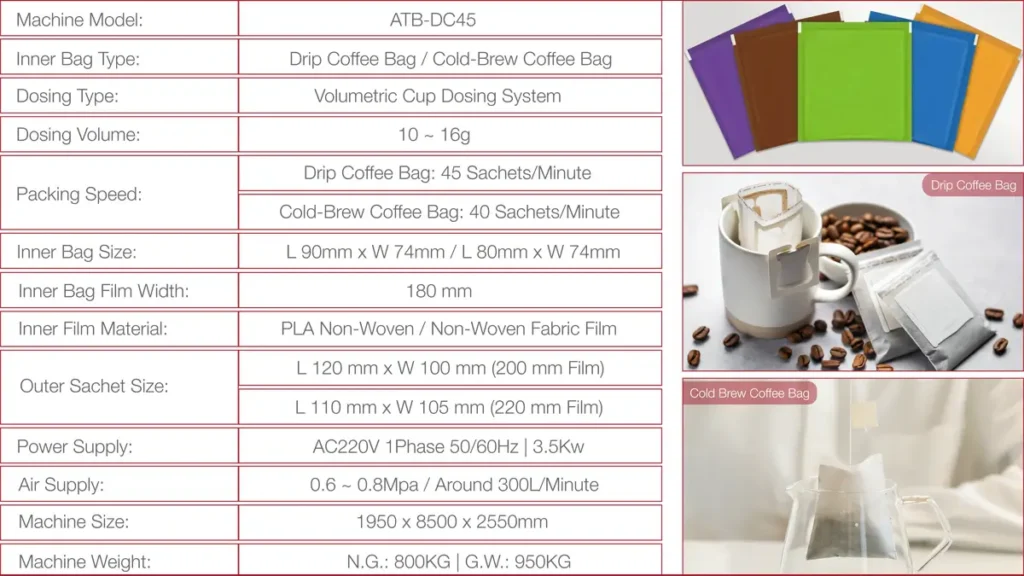

MODEL ATB-DC45 | DRIP COFFEE PACKAGING MACHINE TECHNICAL DATA

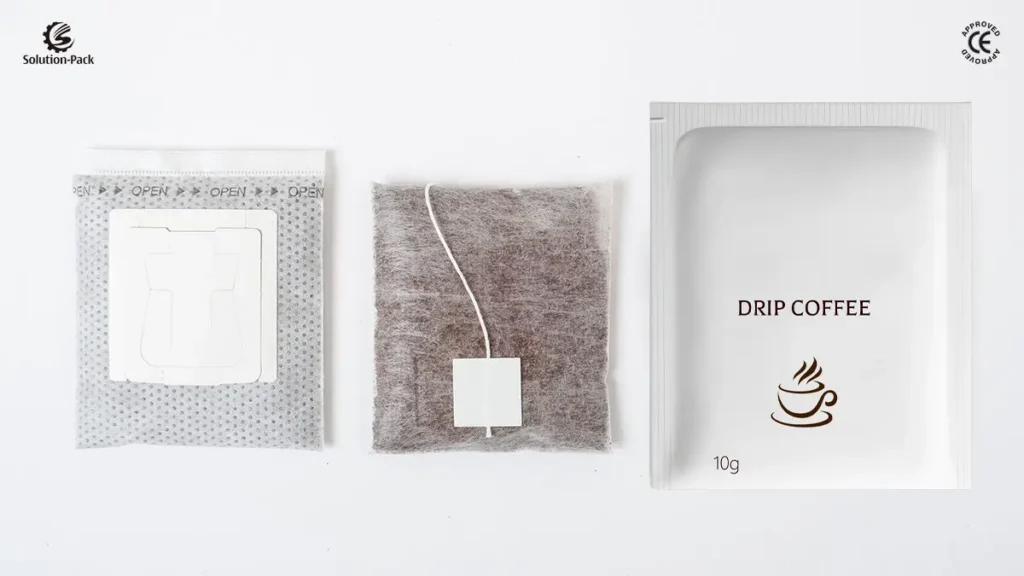

This drip coffee bag packing machine is an upgrade over the ATB-DC35 machine. It uses the horizontal packaging pattern with a robot hand to grasp the inner coffee bag and fill it into the outer sachet. This type of design is more flexible and can produce different outer sachet sizes depending on the direction in which the inner bag is filled. This single-serve coffee packaging machine is suitable for factories that produce OEM for other clients with different printing and sachet size requirements. The entire machine frame and the material-contact parts are made of food-grade stainless steel that meets sanitary requirements for food production. In addition to producing the coffee bag with hanging ears, it could also produce the rectangular-shaped coffee bag with a thread and a label.
SUBMIT HERE TO CONTACT US
KEY FEATURES | DRIP COFFEE BAG PACKING MACHINE
- The drip coffee bag packing machine unit adopts 3-side ultrasonic cutting and sealing technology, which could produce neat and beautiful coffee bags. Meanwhile, it could also cut a U-type easy-tear notch on the outer sachet. By changing the packaging films, this drip coffee bag packing machine can easily produce flat coffee bags with thread and labels. The machine unit is widely used in the ground coffee packaging market to improve production efficiency.
- This machine unit uses a Siemens PLC and an intelligent Siemens HMI for easy operation. The entire machine frame and the material-contacting parts are made of food-grade stainless steel that complies with food-sanitary standards. And the core components of the equipment are from internationally renowned brands such as SMC, Schneider, and Omron, which are highly substitutable and readily available in the local market. An automatic vacuum elevator system shall be provided as an option. We would design the connection with a material-level sensor system to ensure continuous production for the client.
- The nitrogen Gas input device is reserved on the machine unit, and the client can freely choose whether to input nitrogen according to production requirements. All machine frame and material-contacting parts are made of SUS304 stainless steel. The safety door is made of Lexan Transparent board to ensure the client can check the machine’s operating state. The machine has high production efficiency with a speed of up to 2700 bags per hour (2400 bags per hour when input Nitrogen Gas).
Choose Solution-Pack | Our Experience | Your Success
- Compared with traditional coffee brewing methods, drip coffee bags are more convenient and time-saving. It is widely applied at home, in the office, and on business occasions. Solution-Pack has focused on coffee bag packaging machines for over 12 years with rich experience. We offer a range of machine models to meet the client’s production requirements. All the machine models adopt an integrated design style, which could save installation space and be easy to operate. Each machine model has been running for the users’ present with stable performance.
- Solution-Pack also provides sample material testing services for new factories or clients just starting up in the drip coffee bag packaging business. The client could deliver around 2-4 kg of vacuum-packed coffee material to us, and we shall arrange machine testing and take a video for the client to check the machine’s performance on their products. Meanwhile, we can deliver the tested drip coffee bags to them for assessment of sealing performance and dosing accuracy.
- Most new users are not very clear about the inner drip coffee bag packaging films. We can support them together with the non-woven fabric films with hanging ears, PLA non-woven fabric films with hanging ears, and PLA non-woven fabric films with thread & tags. Customized tag log design work is available if users need to print their log on the tag. Feel free to contact us for more details or to continue the conversation.
FAQ | SINGLE-SERVE COFFEE PACKING MACHINE
How to produce drip coffee bags?
The drip coffee bags could be produced manually using pre-made drip bags on the market, but the production capacity would be very slow. Most coffee manufacturers adopt the automatic single-serve coffee packing machine solution to produce them at high speed. The most economical machine model for floor use is the ATB-DC30P and ATB-DC30E, which produce only inner-filter drip bags. If the user needs to package with an outer foil sachet and flush Nitrogen gas inside, other models, such as ATB-DC35, ATB-DC45, and ATB-DC55, are available as options. Each machine model has its unique features for production. Interested parties could submit their requirements to Solution-Pack to get professional proposals.
How many drip bags can be produced per minute?
If users only need to produce inner coffee drip bags, they can consider the model ATB-DC30E or ATB-DC30P machine unit, which could offer a stable production speed of 25~45 bags per minute; if users need to produce foil-wrapped coffee drip bags, they can consider the model ATB-DC45, or ATB-DC55 machine unit, which offer a stable production speed of 45 ~60 sachets per minute with the Nitrogen flushing function. The newly released ATB-DC35 machine unit is the most economical high-speed coffee drip-bag packaging solution, featuring outer foil-sachet functionality.
How many grams of ground coffee can the drip coffee bag hold?
The standard coffee drip bag size is 74 x 90 mm. Generally, it can hold 8-12 grams of medium-roast ground coffee. The bulk density of ground coffee varies with roast and grind level. When the standard coffee drip bag size is not enough to meet the target packaging weight, users can choose custom sizes such as 80 x 90 mm or 90 x 90 mm. Users can deliver sample coffee products to us to run directly through the machine to test the best bag size for their project.
What kind of drip bag film can be used on the drip coffee packaging machine?
The most popular material used in the coffee drip bag packaging market is PLA non-woven fabric film. The standard roll of film could produce 4500 drip bags. Compared with traditional non-woven fabric film, it is biodegradable. Meanwhile, if users need to produce cold-brew coffee bags, they can use the PLA non-woven fabric film with thread and a customized label. Each roll of cold-brew coffee bag film could produce 6000 bags. The standard packaging machine works with both film types and can switch smoothly during daily production.
How to purchase the drip coffee bag packaging machine from Solution-Pack?
Interested parties could submit their requirements on Solution-Pack. Before submitting, interested parties should conduct market research and have a clear idea of their target packaging weight per bag, inner-bag patterns, production capacity, and other functions. The Solution-Pack team will provide feedback within 12 hours of receiving their detailed requirements submission. We shall provide a detailed official quotation to their team once all details have been confirmed as correct. The standard international business process shall start formally when the interested parties accept the budget.
