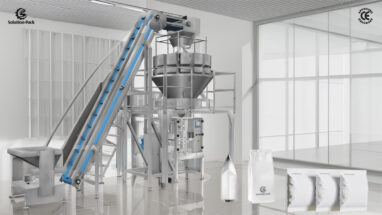

The VSP520M vertical packing machine, with its multi-head weighing and filling system, is the most typical vertical form-fill-seal machine on the market. It could be used to automatically produce pillow-type or gusset-type bags with stable performance. The multi-head dosing system is customized to the product’s features, with 10 to 20 heads available as an option. It could connect to the front production line or to an elevator system to enable an automatic production process. Presently, this system is widely applied in the food market to pack materials like chips, snacks, nuts, beans, pet food, seeds, and grains.
MODEL VSP520M | TECHNICAL DATA

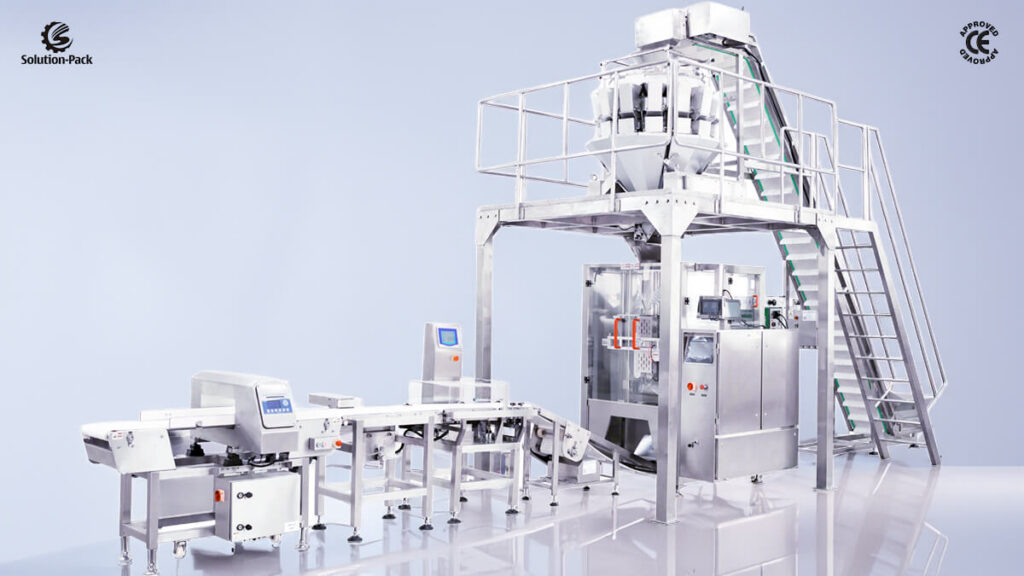

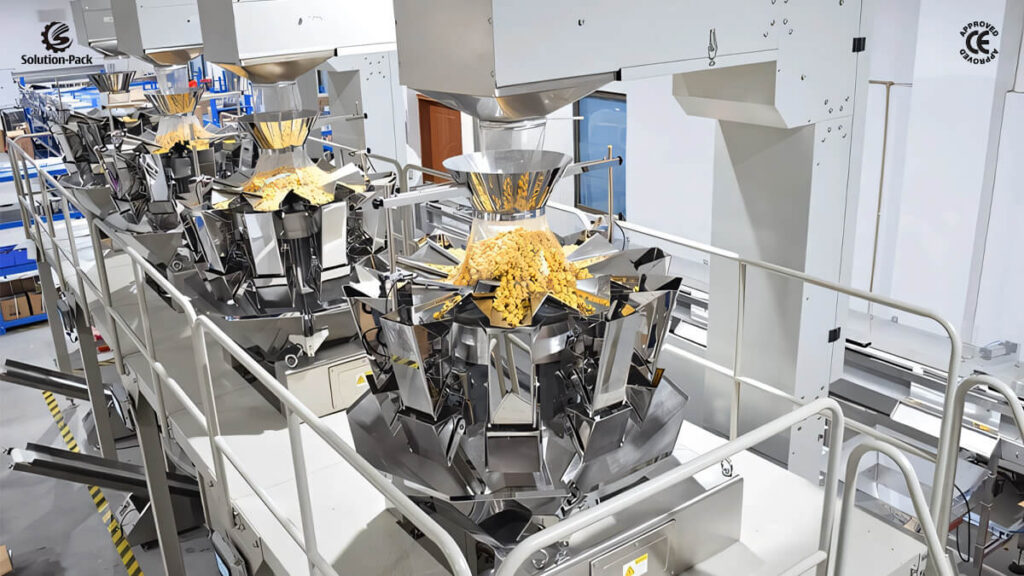

This vertical packaging machine unit is the most popular equipment in the market for packing regular or irregular products into bags. The multi-head weighing and filling machine is computer-controlled, with an independent HMI interface for operation. The combination weighing method ensures high accuracy when weighing irregularly shaped or mixed products. Solution-Pack could help users connect several sets of packaging machine units to the carton box repacking production line or the bag-in-bag secondary repacking production line. The entire production line shall be fully customized to meet users’ warehouse layout and production requirements.
SUBMIT HERE TO CONTACT US
TYPICAL VERTICAL PACKING MACHINE FEATURES
- Intelligent Design: The entire vertical form-fill-seal packaging machine adopts a compact structure design for more stable operation. It is more optimized for convenient operation. The entire machine frame and material-contact parts are made of food-grade stainless steel to meet sanitary requirements for food production. The steel surface is fully polished to ensure optimal appearance and ease of cleaning. The safety door system uses a transparent Lexan panel, allowing the user to easily observe the machine’s internal mechanical movements.
- Advanced Configuration: As one of the leading vertical form-fill-seal machine manufacturers, Solution-Pack offers a high-standard configuration that provides users with a pleasant user experience. We adopt a Siemens PLC-based control system with a 10-inch color HMI for convenient operation. The other related pneumatic and electrical parts also use AirTac, SMC, Schneider, or equivalent brands to facilitate easy sourcing of spare parts from the local market. Meanwhile, the user could also choose to purchase them directly from us.
- Customized Features: The standard packaging machine unit does not include the elevator system or the product’s take-off conveyor system. Generally, we shall review the client’s product features and then propose the most suitable elevator and conveyor system for them. Different materials and bag shapes have different features. Unlike small vertical form-fill-seal machines, the VSP520C vertical packaging machine solution requires working with the client to determine the best combination for the specific production needs.
- High Efficiency & Labor Cost Savings: The vertical pouch packaging machine can produce around 35-50 pouches per minute, with only one operator to run and maintain the machine. Compared with traditional labor-intensive packaging, it can handle the workload of 10 laborers simultaneously. Suppose the factory keeps the machine running every day, it will be very easy to save on costs. The most important thing is that it allows the factory to speed up production to meet the market order needs to gain more orders.
- Beautiful Bags & Safety Production: The vertical packing machine forms the pouch by following the PLC’s instructions to repeat the action, ensuring that the produced pouches are uniform and have high weighing accuracy compared to manual packaging. The sealing style and width could be customized to the user’s requirements. Meanwhile, all material-contacting parts are made of SS304 stainless steel, which can help users obtain food production sanitary certification and win more orders.
CHOOSE SOLUTION-PACK | OUR EXPERIENCE | YOUR SUCCESS

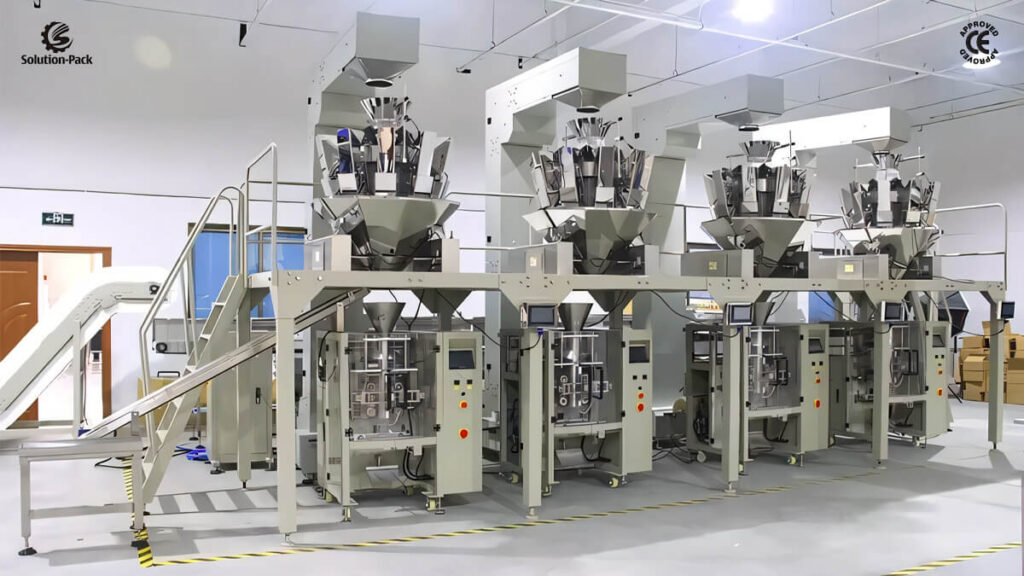

- We are one of the leading vertical form-fill-seal machine manufacturers in China, with over 12 years of experience in integrated packaging solution design and manufacturing. The VSP520M machine model supplied by us can perform both gusset bag and pillow bag packaging, with the bag forming collar system taking around 10 minutes to change. It allows the user to pack uniform granule materials at a stable production rate of 35-50 bags per minute, depending on the product’s features and additional functional requirements. You will surely get the most suitable machine solution for your project if you choose to cooperate with us;
- We provide two types of after-sales service systems for the client, depending on the conditions. If the user has a professional engineering team, we propose the online installation instruction service. We shall open the WeChat video online when the machine arrives at the client’s factory, and then guide the user to install the machine unit and adjust all the parameters. However, if the user is installing the machine for the first time and has no knowledge of packaging machines, we shall arrange for our engineer to travel to the factory to perform the installation and provide training for the user. It depends on the user’s choice to conduct the work.
FAQ | VERTICAL FORM-FILL-SEAL PACKAGING MACHINE
What are vertical form-fill-seal packaging machines?
The vertical form-fill-seal packaging machine is a popular device that helps users turn roll film into bags and seal them automatically. The standard machine could handle pillow-type or gusset-type bags. The bag-forming collar devices are fully customized to users’ roll film width. The sealing and cutting system will follow the users’ target pattern for design and manufacturing. Generally, each machine model has a maximum roll film width. Users need to switch to different machine models when their roll film widths differ significantly.
How do vertical packaging machines work?
Vertical packaging machines take a large roll of film, form it into a bag shape, fill the bag with product, and seal it. All the processes are arranged vertically. The roll film goes through the data printer and positioning device into the forming collar. The synchronized belts pull the film down on the forming tube. The sealing devices are composed of vertical and horizontal parts. It can connect to various weighing and filling systems to handle a range of materials. The entire machine is controlled by a Siemens PLC and operated on the HMI interface.
What are the key advantages of the vertical packing machine?
Vertical form-fill-seal packaging machines are used in almost every industry today. They are fast and economical; the standard machine unit could produce around 30~50 bags per minute, which could help users improve production efficiency and save labor costs. The entire machine frame and material-contact parts are made of food-grade stainless steel, which complies with sanitary food production requirements. Meanwhile, they can produce more beautiful, neat bags for the international market than with the manual packaging method.
How to select the vertical packaging machine models?
When combined with different dosing and filling systems, the VFFS machine can package a wide range of products. For example, if the users need to package 100~1000 grams of uniform granule products, they can choose model VSP520C, VSP520M, or VSP520L; if the users need to package 500~2000 grams of powder products, they can choose model VSP630P, which is connected to the auger screw dosing filling machine; if the users need to package a larger weight of 2~5 kg granule products, they can choose model VSP780L which is connect to the linear weighing filling machine. There are unique bag-in-bag secondary packaging solutions, such as the VSP-1100BL and VSP-N5, that help users repack small primary bags into larger bags or sacks.
How to purchase the VFFS packaging machine from Solution-Pack?
Interested parties can submit their requirements via our page or email us directly. They need to conduct market research to determine the exact packaging weight, target production capacity, and bag sizes they need to produce. Meanwhile, the installation warehouse CAD design document is needed for further solution design work. Our team will analyze all the provided data and work out the reference installation solution design and quotation document for their review. Solution-Pack focuses on providing professional services to users, while we also need their support to enable two-way communication and deliver the perfect project.
This is an automatic weight-check and reject machine unit that can connect to the packing machine to verify packaging weight and reject unqualified bags, ensuring the final product’s quality.
This is an automatic metal detector and reject machine unit that can connect to the packing machine to check for any small metal products inside the bag, ensuring the final product’s quality.
This is an automatic Markem Image TTO Thermal Printer that enables users to print customized MFD, EXP, LOT Number, Batch Code, or other information within a 32 x 75 mm area.
