MODEL VSP520P

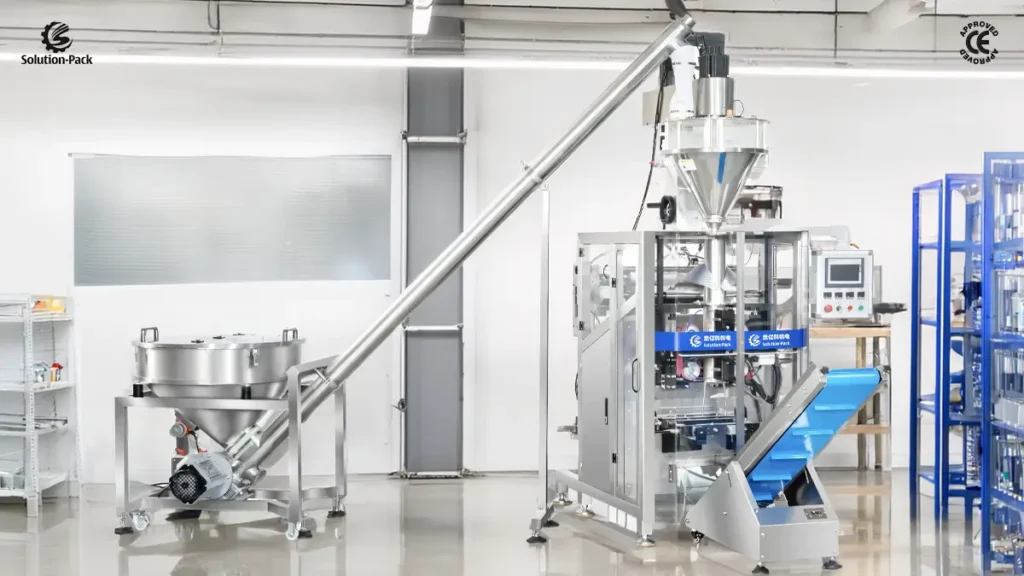

The VSP520P automatic powder vertical packaging machine solution is a VFFS packaging machine for packing non-free flow powder products. This solution is generally composed of the screw elevator system, auger screw dosing filling system, the vertical form fill seal machine, and the product’s output conveyor. It normally packs a fixed weight from 100 grams to 1000 grams and needs to change the filling tube and screw if the user’s packing weight differs a lot. This vertical powder packing machine could produce a pillow-type bag or a gusset-type bag with different devices equipped. This solution is applicable for 50 ~ 80 meshes of non-free flow powder materials like wheat flour, rice flour, corn flour, bean flour, spices, additives, etc.

This vertical packaging machine solution is the most typical and standard packaging method for powder materials. The high-accuracy auger dosing filling machine is equipped fast tear function for the user to realize the daily maintenance and cleaning easily. The long-screw auger could better solve the issue of powder material counter-attack. The screw elevator tube could also design an easy open function that allows the users to open the tube and clean it every day. The overall design is compact and easy to install with simple guidance.

This powder vertical packing machine solution could realize the function of automatic powder elevating, powder dosing, film pulling, date printing, bag forming, powder filling, heat sealing, and finished bag output. It could produce around 25 ~ 35 bags per minute according to the target weight and powder features with only one labor operating. The whole machine frame and the material contacting parts are made of SS304 food-level stainless steel to meet the food production requirements. The elevator hopper is also designed with a transparent hopper cover to prevent dust and check the material level easily.

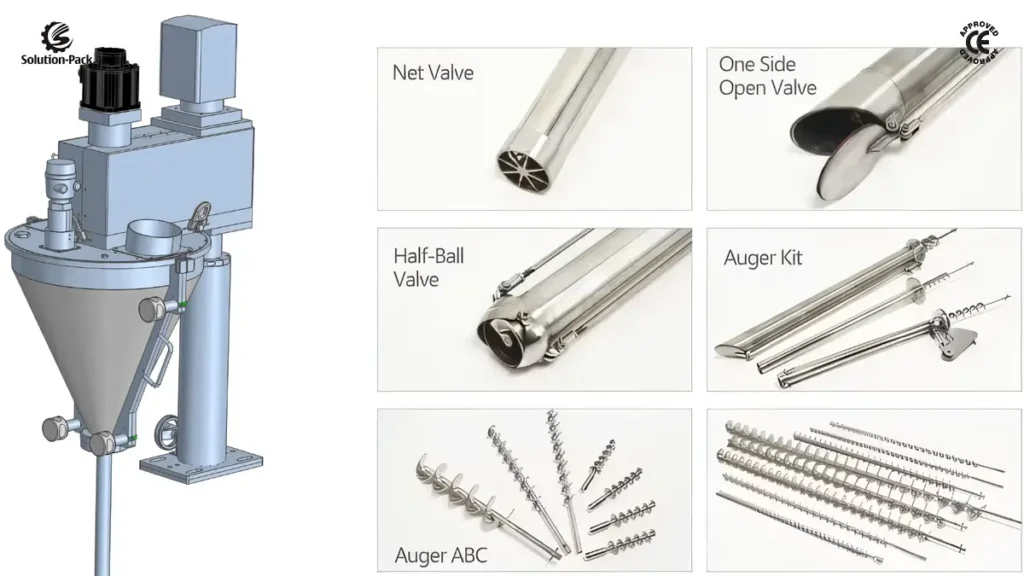

The auger dosing system adopts a side open design which could facilitate the user to maintain the machine easily. The screw is driven by the Panasonic servo motor which could better ensure the dosing accuracy. The stirring system is also equipped to protect the filling uniformity and prevent powder overheads in the filling process. The main machine is controlled by Siemens PLC with a 10″ HMI interface for operation. The operation system shall use a CH/EN double language operation interface and customized language is also available.

• We are one of the leading vertical forms fill seal machine manufacturers from China with a rich experience of over 12 years in integrated packaging solution design and manufacturing. The VSP520P machine model supplied by us could perform both gusset bag packaging and pillow bag packaging by taking around 10 minutes to change the bag forming collar system. It allows the user to pack uniform granule materials at a stable production speed of 25 ~ 35 bags per minute according to the product’s features and additional function requirements. You will surely get the most suitable machine solution for your project if you choose to cooperate with us;
• We provide two types of after-sale service systems for the client under different conditions. If the user has a professional engineering team, we propose the online instructing installation service. We shall open the WeChat video online when the machine arrives at the client’s factory and then guide the user to install the machine unit and adjust all the parameters. However, if the user is for the first time to install the machine and without any knowledge of packaging machines, we shall arrange for our engineer to travel to the factory plant to make the installation and training work for the user. It depends on the user’s choice to conduct the work.
