The tea leaf automatic universal grinding machine uses the high-speed relative motion between movable gears to crush leaf materials through gear impact, friction, and material impact. The utility model has the advantage of a simple structure, firmness, stable operation, and good crushing effect. The crushed material can be removed directly from the main engine’s grinding chamber, and the particle size can be controlled by changing the screen filter with different apertures. This automatic universal grinding machine unit is widely used in the crushed tea leaf, herbal tea, and flower tea markets to grind materials into different sizes using stainless steel mesh filters, ensuring stable running performance and reliability.

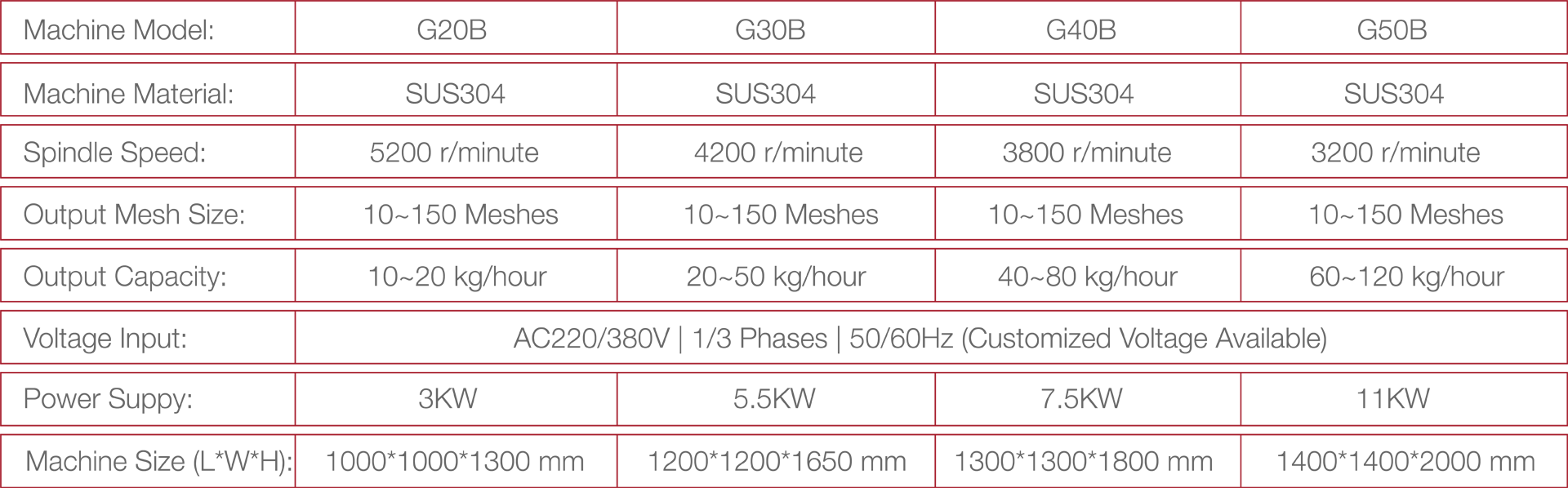

UNIVERSAL GRINDING MACHINE | TECHNICAL DATA
The universal tea leaf grinder is widely used by tea factories or plants to process dried tea leaves or herbals into specific sizes to meet the production needs of filter paper teabag packaging machines. The output material size is controlled by the stainless steel mesh filter. The mesh filter sizes could be customized, and the user could change the output material size by replacing the filter inside directly. The entire operation takes only around 5 minutes to complete. The entire machine frame and the contacting parts shall be made of SS304 stainless steel to meet food production requirements. Different voltage inputs can be customized to meet local market standards.
ADVANCED FEATURES OF THE TEA LEAF GRINDER

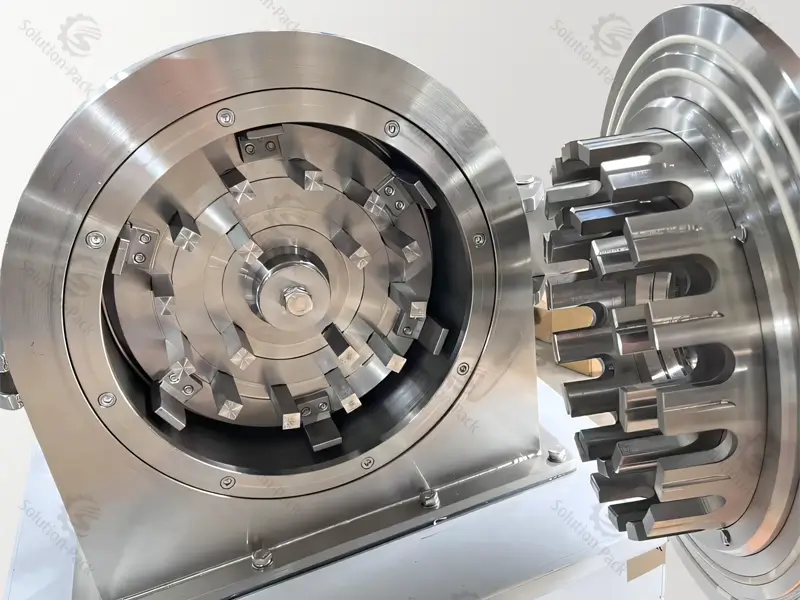

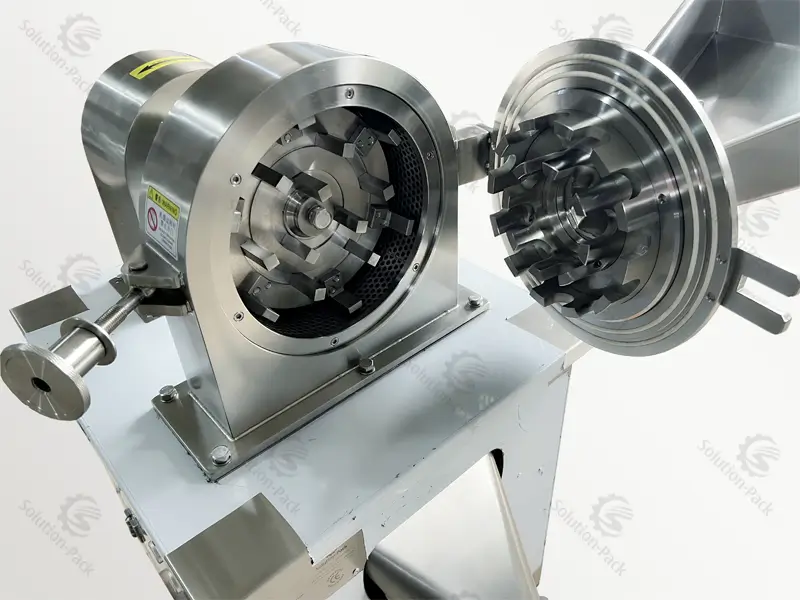

- Cutterhead high-speed rotation shear grinding. There is a screen outside the cutter head for filtration. After crushing, the powder passes through the screen and enters the discharge port. This powder grinding machine is widely used in industries such as medicine, chemicals, and food for grinding dry, fragile materials. Materials with low softening points and high viscosity are not appropriate for this machine. The main motor shall use a well-known high-power all-copper motor that meets the IP55 protective class. The electrical components use Schneider Electric to ensure optimal performance. The key part of the machine adopts an NSK-sealed bearing with a durable anti-corrosion coating.
- The water cooling system can effectively reduce the temperature of the bearing and the cavity, avoid high-temperature damage to the material, and protect the bearing, ensuring stable and lasting operation. The door is equipped with a proximity switch that can trigger an instant stop when the door is opened, effectively ensuring production safety. The layout of the control area is reasonable. There is a meter that can tell the operator the feeding speed, whether too fast or too slow. The metal surface has been professionally polished to make it smooth and beautiful.
- This tea leaf grinding equipment is equipped with a special safety switch on the door. The machine shall stop immediately upon door opening. The emergency stop is also installed around the equipment’s operation area to ensure operational safety. Meanwhile, an internal circuit breaker protects the instrument from overload. All machine frames and parts in contact with food are made of food-grade materials to meet GMP and CE standards. The entire grinding machine unit is compact and easy to operate, making it the first choice for most start-up companies. ;
- This herbal grinding equipment produces a fine powder and achieves a good crushing effect. The processing is completed once and will not resume; a scientific design ensures stable operation over the long term. Solution-Pack strictly controls the quality of the spare parts and materials. The wall of the grinding machine chamber is bigger, thicker, anti-tearing & torsion, and not easy to deform. Welcome to contact us to get the latest price of the tea leaf grinding equipment!
SUBMIT HERE TO CONTACT US
What is the tea leaf grinding machine?
The tea leaf grinder is a common machine widely used in the tea manufacturing industry. There are two types of grinding machines available. The G-series Grinding Machine focuses on processing the tea leaves to 20 ~ 60 meshes to fit the packaging needs of the filter paper teabag packaging machine. The CY-series Crude Grinding Machine focuses on processing the tea leaves to 3 ~ 10 mm to fit the packaging needs of the pyramid teabag packaging machine. The two machine series adopt different processing principles to produce products with the correct mesh size to meet users’ production requirements.
How does the tea leaf grinder work?

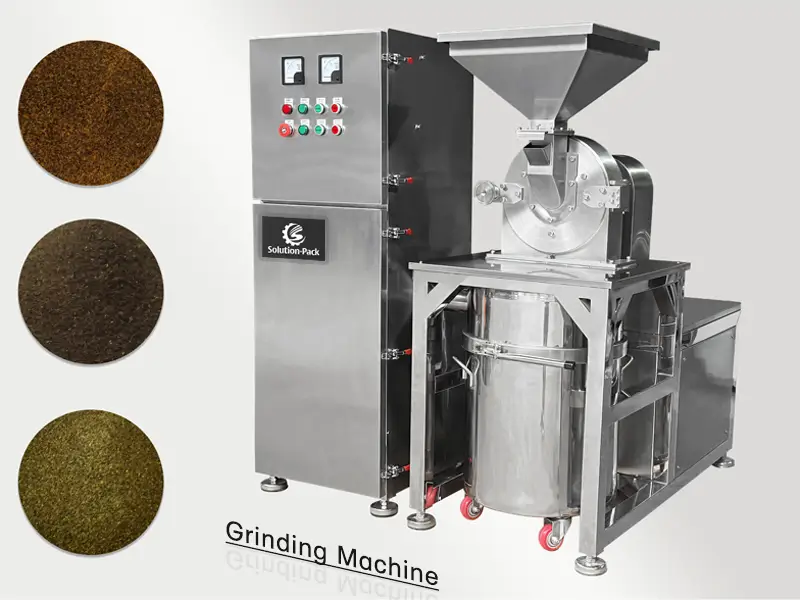

The universal grinding equipment uses high-speed relative motion between gears to crush leaf materials through gear impact, friction, and material impact. The crushed material can be removed directly from the main engine’s grinding chamber, and the particle size can be controlled by changing the screen with different apertures. The manual can put a stainless steel bucket down the output chute to collect the processed material for the next stage of filter paper teabag packaging. It could also be designed with a dust-collection and sealed-bucket system to reduce dust during the grinding process, thereby protecting warehouse workers.
How to choose the universal tea leaf grinding machine for production?
Different tea leaf grinders produce different output capacities. Users can track their target production amount to select the correct machine model for their production. For example, if the user runs our ATB-S1 filter paper teabag packaging machine, which produces 40 teabags per minute at 2 grams/bag, the target requirement would be around 48kg over 10 hours. In this way, the user can choose the basic model G20B machine unit, which can output around 10-20kg per hour, depending on the material’s bulk density. Interested parties can consult the Solution-Pack team for professional proposals for their production.
How to purchase the grinding machine from Solution-Pack?
Before purchasing the grinding equipment, interested parties should be clear about their production target, whether their final products will be packaged in filter paper teabags or pyramid teabags. Meanwhile, they need to calculate their target production capacities to choose the correct machine model. What’s more, and most importantly, they need to conduct market research and determine the sizes they want to process. They can submit this information to the Solution-Pack team, who will provide a professional proposal and a detailed quotation within 12 hours.
