ATB-PD40 automatic foil-wrapped pyramid teabag packing machine unit is an integrated machine model. It could pack leaf or crushed tea products into the triangular/rectangular type tea bag and then repack into a 3-side seal foil envelope sachet. This teabag machine adopts a vertical design style and an advanced six-tunnel dosing filling system is adopted to measure the tea products with high accuracy. This tea bag packing machine model is widely applied to Green Tea, Black Tea, Moringa Tea, Pu’er Tea, Formula Tea, Babao Tea, Health Tea, Chinese Medicine Pieces, etc.

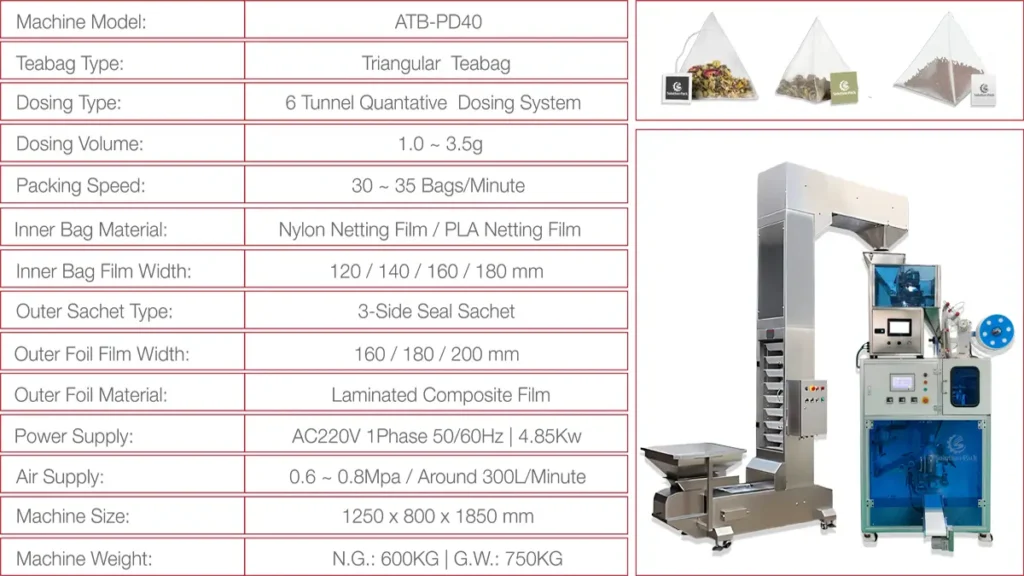

MODEL ATB-PD40 | TECHNICAL DATA

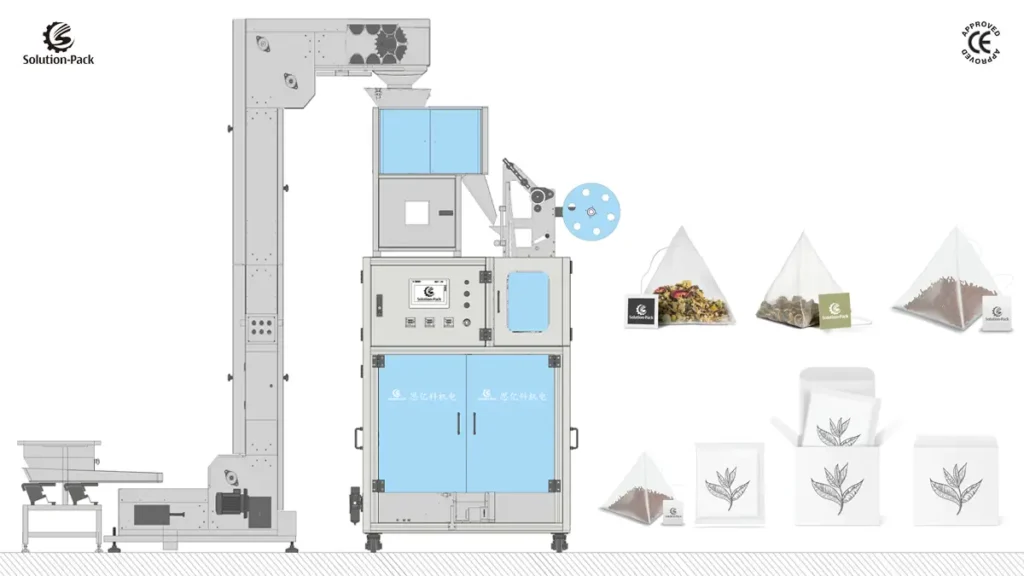

This pyramid teabag packaging machine adopts a vertical design style that is compact and easy to install. Both the inner teabag and outer sachet sizes are customized to the volume of the tea products that the user needs to pack. It is mostly used to produce the pyramid-shaped inner teabag with an outer foil sachet function. It could also be used to produce pure inner teabags for stocking. The Z-Type bucket elevator could be equipped when the user packs single or pre-mixed tea products. The tunnel quantities could be customized to customized when the user needs to produce formula tea products. This teabag machine could dose a maximum of 4 kinds of formula tea products.
SUBMIT HERE TO CONTACT US
ADVANCED FEATURES OF THE PYRAMID TEABAG PACKING MACHINE

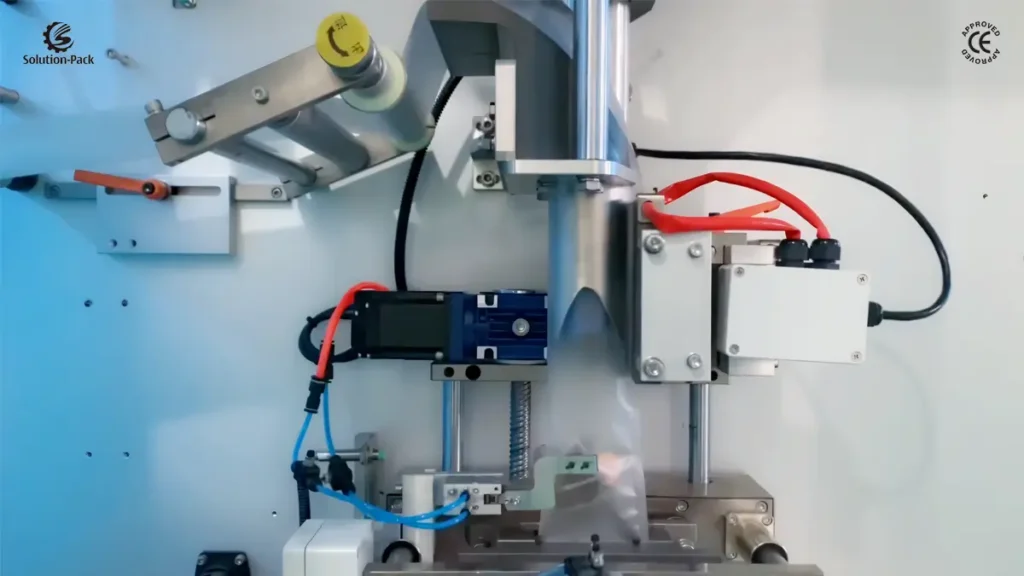

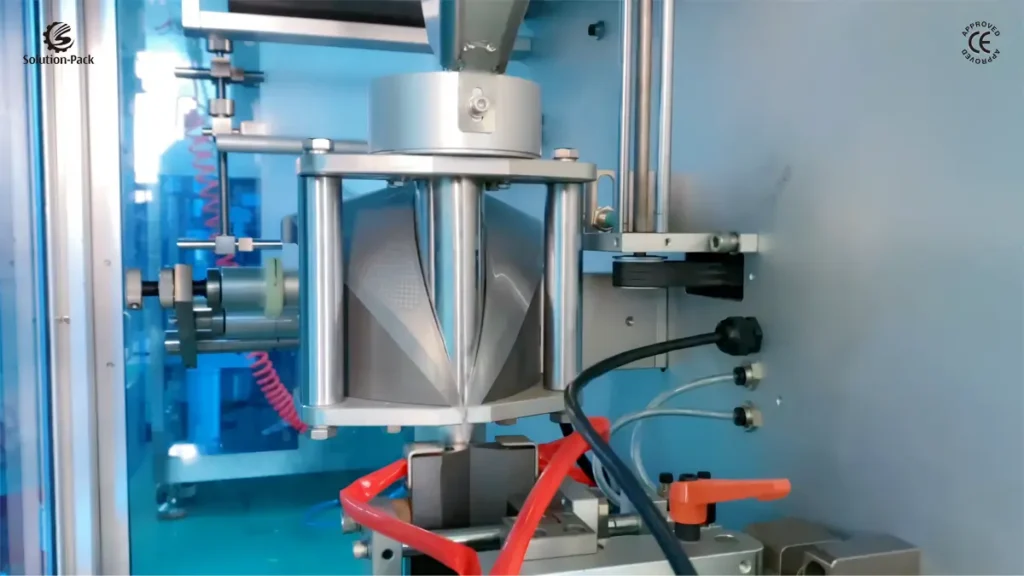

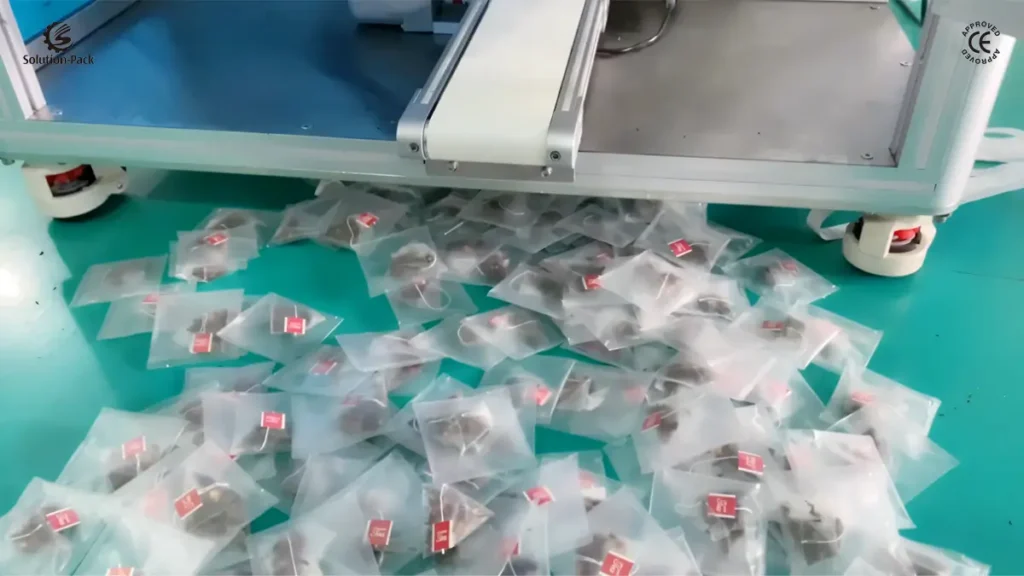

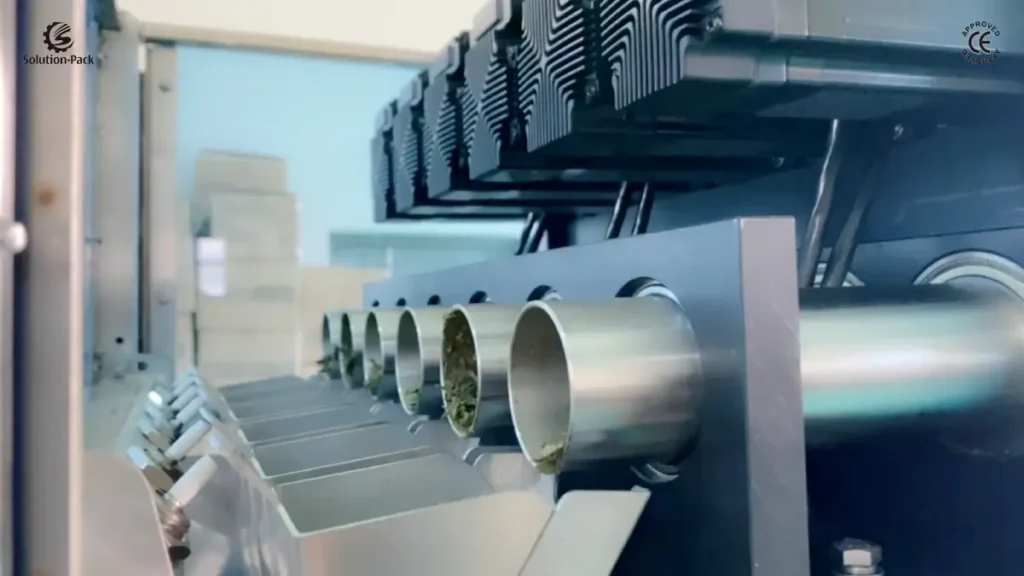

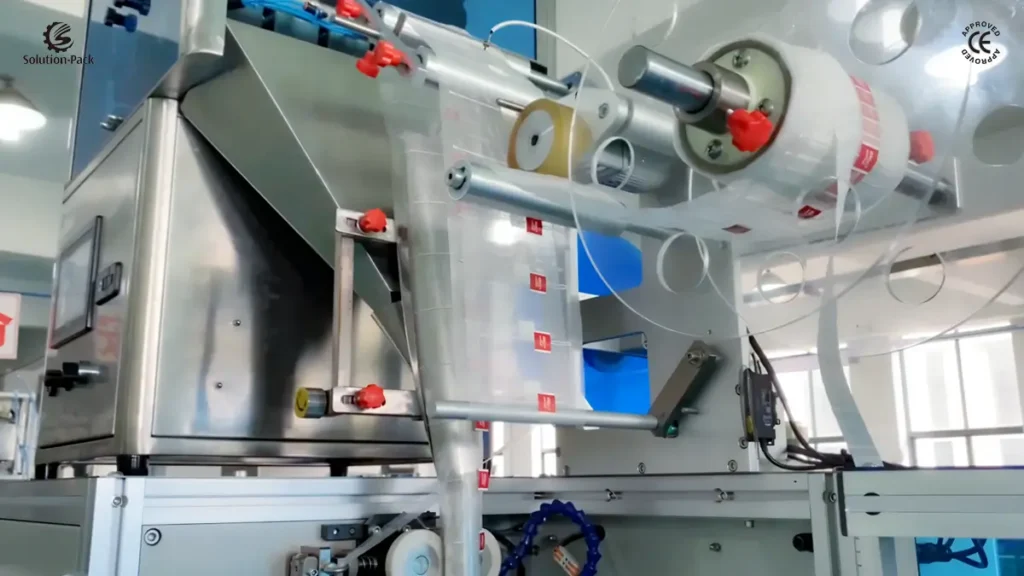

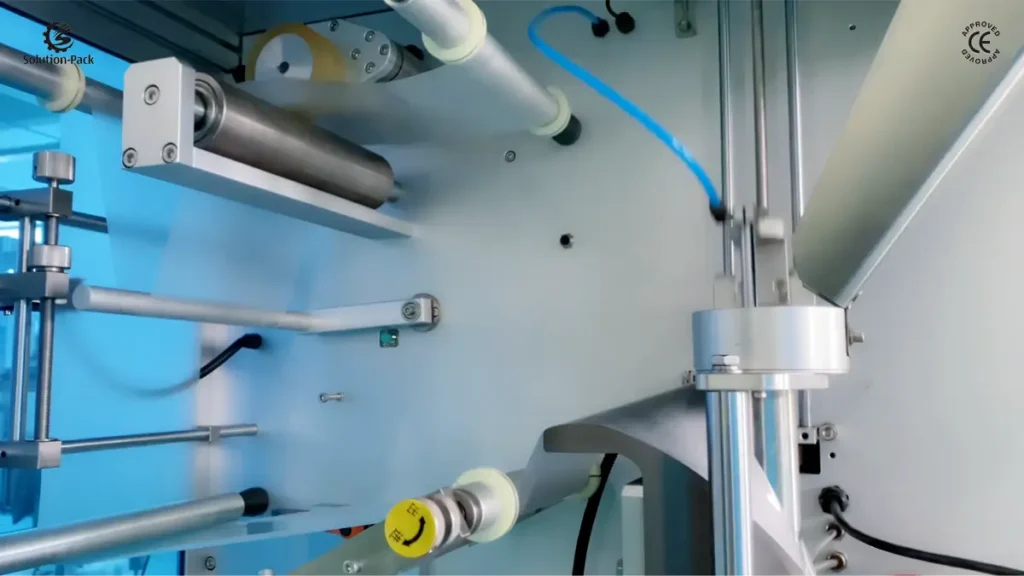

- The ATB-PD40 automatic foil-wrapped pyramid teabag packing machine unit adopts advanced ultrasonic sealing and cutting technology. It could produce a beautiful inner pyramid tea bag and a 3-side seal outer sachet with an easy tear notch. The automatic quantitative 6-tunnel measurement can easily change the filling amount during production. The vertical outer sachet form-fill-seal system is connected with the inner tea bag charter, then the inner teabag shall be wrapped in the outer sachet automatically. The integrated design style could save more installation space;
- This pyramid teabag packaging machine uses Siemens PLC control and an HMI touchscreen display to ensure more stable performance and a more simple and human-friendly operation. The Internationally famous brand of pneumatic and electrical parts like SMC and Schneider is adopted to extend the service life of the machine. The use of mechanical & electrical integration design could ensure the replacement of data without stopping or shutting down. Meanwhile, one key switch is designed on the HMI for the user to easily change the inner bag shape from a triangular shape to a rectangular shape.
- It is well-known that the pyramid teabag is a well-shaped tea bag with a good appearance and is more favorable to the market. Traditional tea bags adopt filter paper film which is soft and only applicable for granule or powder-type tea products. However, the pyramid teabag has a bigger volume and could support the clients to pack more tea leaves into it. Getting a suitable pyramid teabag packing machine for production becomes more and more important. Solution-Pack has focused on the teabag packing machine market for over 12 years with rich experience. We only propose the most suitable packaging solution to meet the client’s production needs;
- We supply sample material testing services for the client who is a start-up on the tea bag machine project. Each client could deliver around 2KG sample tea materials to us. The products must be vacuum-packed before delivery. Then we shall arrange the machine to test the material and propose the most suitable inner and outer tea bag size for the client. In this way, it could better ensure the client gets the most accurate packaging data for their products. Solution-Pack could also supply the client with customized packaging materials like PLA/Nylon/ Non-Woven Fabric Netting Films.
